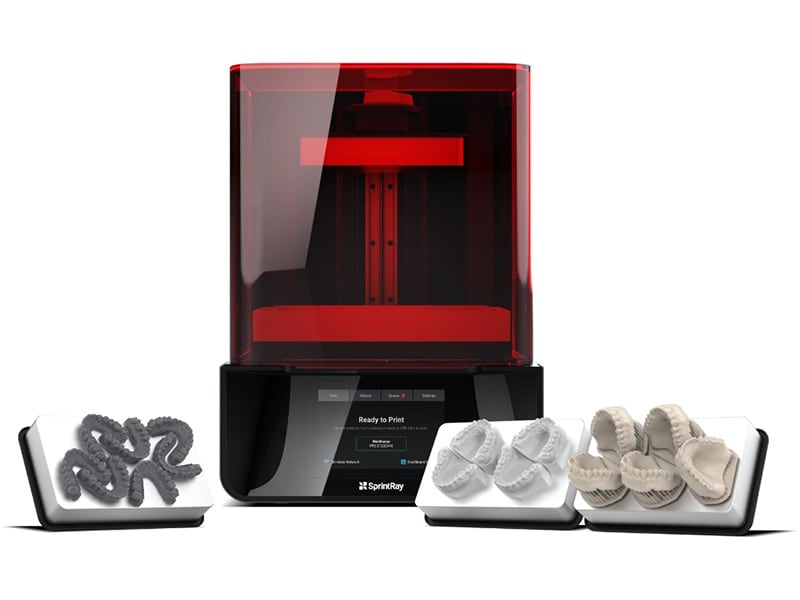

SprintRay Pro 95 Dental 3D Printer

SprintRay Pro 95 Dental 3D Printer

SprintRay Pro 95 Dental 3D Printer

SprintRay Pro 95 Dental 3D Printer

SprintRay Pro 95 Dental 3D Printer

Accurate production and high throughput for dental appliance

Featuring unmatched throughput, printing up to 30 full-arches dental models in a single batch, high accuracy, and a high flexibility, Pro95 is the right choice for most dental laboratories. Incredible accuracy, repeatability, and user-friendliness means you can always deliver an outstanding patient experience. The unique open certified resin system allows you to leverage the industry’s greatest materials, whether they came from SprintRay or another material provider.

Uses and Advantages:

  • Surgical Guides
  • Models for Aligner Production
  • Digital Dentures and Try-ins
  • Study and Wax-up Models
  • Indirect Bonding Trays
  • Occlusal Guards

Validated Printing Resins:

  • Trusana
  • SprintRay Resins
  • Keystone Resins

Technical Documents:

SprintRay Pro 3d Printer Brochure

Compare the Pro 3D Printer Technical Specs
Model Pro95 Model Pro55
Printing Technology Digital Light Processing (DLP)
Direct Peel Mechanism
Manual Resin Filling
Easily Removable Supports
Print Volume 7.1" x 4" x 8" 18.2cm x 10.2cm x 20cm 4.1" x 2.3" x 8" 10.5cm x 5.9cm x 20cm
Layer Thickness Options 50 Microns, 100 Microns, 170 Microns
Minimum Feature Size 95 Microns 55 Microns
Print Speed up to 2 in/hour @ 100 Microns
1 in/hour @ 50 Microns
Resin Curing Unit SprintRay Custom-Built 1080P FHD Projector
Texas Instruments DLP Chip
405nm LED
LED-based Light Source
50,000 Hours Expected Lifetime
Resin Tank 500 mL Capacity
Vacuum Formed Protective Cover
Up to 50 Liters Extended Lifetime
Connectivity 5GHz Wi-Fi Chipset
Direct Ad-Hoc Mode via Wi-Fi b/g/n
Local Network via Wi-Fi b/g/n
Local Network via Ethernet Cable
Printer Control 7" Touchscreen with Direct Print via USB Port
Printer Unit Dimensions W x D x H
14" x 16" x 20"
35cm x 40cm x 50cm
W x D x H (When Open)
14" x 20" x 24"
35cm x 50cm x 61cm
Shipping Size & Weight 20" x 20" x 22" - 40 lb
53cm x 53cm x 58cm - 18 kg
